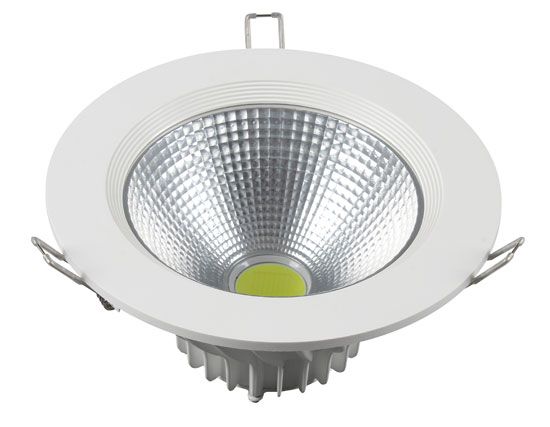

LED DOWN LIGHT
DST-D01 010 050
| ITEM NO. | DST-D01 010 050 | DST-D01 015 051 | DST-D01 020 052 |
| DIMENSION (MM) | Φ110xH67 | Φ150xH78 | Φ180xH95 |
| CUT HOLE (MM) | Φ95 | Φ130 | Φ160 |
| LED POWER | 10W | 15W | 20W |
| LED QTY | 1PC | 1PC | 1PC |
| REFLECTOR DEGREE | 60D | 60D | 60D |
| LUMINOUS FLUX | 800LM | 1200LM | 1600LM |
| INPUT VOLTAGE | AC100~240V 50/60Hz | AC100~240V 50/60Hz | AC100~240V 50/60Hz |
| LED CHIP | JD | JD | JD |
| COLOR TEMPERATURE | 3000~6500K | 2800~6500K | 2800~6500K |
| OPERATING TEMPERATURE | -15℃~50℃ | -15℃~50℃ | -15℃~50℃ |
| MATERIAL | Aluminum | Aluminum | Aluminum |
| BODY FINISH | Painted in WH/BK/GY | Painted in WH/BK/GY | Painted in WH/BK/GY |
