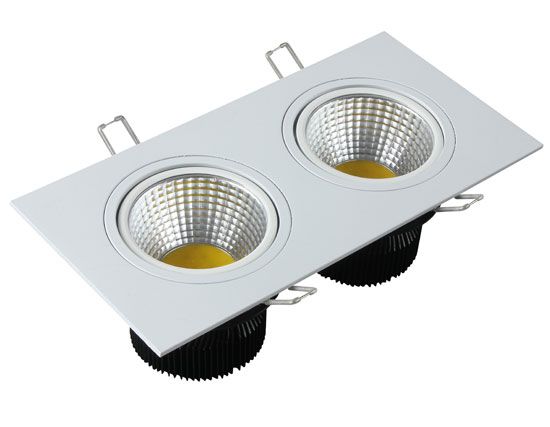

LED DOWN LIGHT
DST-D01 005 036
| ITEM NO. | DST-D01 005 036 | DST-D01 010 037 | DST-D01 020 038 |
| DIMENSION (MM) | L175xW92xH82 | L238xW120xH82 | L280xW140xH82 |
| CUT HOLE (MM) | 75x158 | 100x215 | 120x255 |
| LED POWER | 10W | 20W | 40W |
| LED QTY | 2PCS | 2PCS | 2PCS |
| REFLECTOR DEGREE | 60D | 60D | 60D |
| LUMINOUS FLUX | 600LM | 1200LM | 3200LM |
| INPUT VOLTAGE | AC100~240V 50/60Hz | AC100~240V 50/60Hz | AC100~240V 50/60Hz |
| LED CHIP | JD | JD | JD |
| COLOR TEMPERATURE | 3000~6500K | 2800~6500K | 2800~6500K |
| OPERATING TEMPERATURE | -15℃~50℃ | -15℃~50℃ | -15℃~50℃ |
| MATERIAL | Aluminum | Aluminum | Aluminum |
| BODY FINISH | Painted in WH/BK/GY | Painted in WH/BK/GY | Painted in WH/BK/GY |
