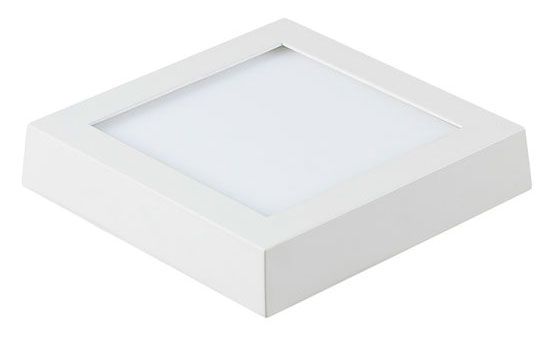

LED PANEL LIGHT
DST-SMD36 006 027S
| ITEM NO. | DST-SMD36 006 027S | DST-SMD72 012 028S | DST-SMD108 018 029S |
| DIMENSION (MM) | 120x120xH35 | 180x180xH35 | 240x240xH35 |
| CEILING BASE (MM) | 120x120 | 180x180 | 240x240 |
| LED POWER | 6W | 12W | 18W |
| LED QTY | 36PCS | 72PCS | 108PCS |
| REFLECTOR DEGREE | 120D | 120D | 120D |
| LUMINOUS FLUX | 550LM | 1100LM | 1600LM |
| INPUT VOLTAGE | AC100~240V 50/60Hz | AC100~240V 50/60Hz | AC100~240V 50/60Hz |
| LED CHIP | SMD2835 | SMD2835 | SMD2835 |
| COLOR TEMPERATURE | 3000~6500K | 2800~6500K | 2800~6500K |
| OPERATING TEMPERATURE | -15℃~50℃ | -15℃~50℃ | -15℃~50℃ |
| MATERIAL | Aluminum+PC | Aluminum+PC | Aluminum+PC |
| BODY FINISH | Painted in WH/BK/GY | Painted in WH/BK/GY | Painted in WH/BK/GY |
