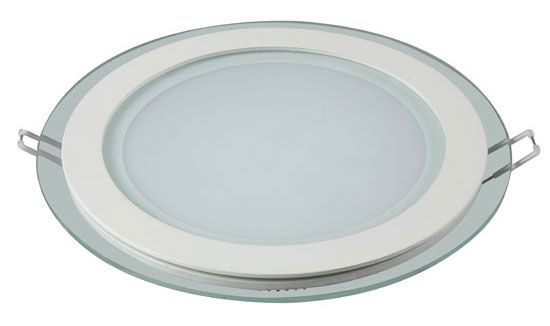

LED PANEL LIGHT
DST-SMD12 006 022R
| ITEM NO. | DST-SMD12 006 022R | DST-SMD24 012 023R | DST-SMD30 015 024R |
| DIMENSION (MM) | Φ95xH35 | Φ160xH35 | Φ198xH35 |
| CUT HOLE (MM) | Φ75 | Φ125 | Φ165 |
| LED POWER | 6W | 12W | 16W |
| LED QTY | 12PCS | 24PCS | 32PCS |
| REFLECTOR DEGREE | 120D | 120D | 120D |
| LUMINOUS FLUX | 520LM | 1100LM | 1500LM |
| INPUT VOLTAGE | AC100~240V 50/60Hz | AC100~240V 50/60Hz | AC100~240V 50/60Hz |
| LED CHIP | SMD5730 | SMD5730 | SMD5730 |
| COLOR TEMPERATURE | 3000~6500K | 3000~6500K | 3000~6500K |
| OPERATING TEMPERATURE | -15℃~50℃ | -15℃~50℃ | -15℃~50℃ |
| MATERIAL | Aluminum+Glass+PC | Aluminum+Glass+PC | Aluminum+Glass+PC |
| BODY FINISH | Painted in WH | Painted in WH | Painted in WH |
